Sale!

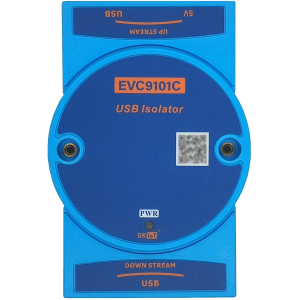

EVC9101C USB 2.0 High Speed Isolator  1 To 1CH Speed Up to 480Mbps For Hifi Audio,USB Cameras

EVC9101C USB 2.0 High Speed Isolator 1 To 1CH Speed Up to 480Mbps For Hifi Audio,USB Cameras

Original price was: $69.99.Current price is: $59.99.

Features:

  • Provides electrical isolation for USB devices
  • Suitable for one-to-one connections with USB interface devices
  • Supports USB high speed, full speed, and low speed devices
  • Internal PCB slotted isolation, 3000V isolation voltage
  • TVS protection (Upstream and Downstream)
  • Driverless operation
  • Suitable for USB hubs and extenders
  • No additional transmission delay
  • Maximum output current of output port: 200mA
  • Input port: USB B-type square port; output port: USB A-type port
  • Switch-level short-circuit protection
  • Input and output ports include ESD protection ( 15kV IEC air-gap discharge)
  • Supports Windows, Linux, MAC, Android, and Windows CE operating systems
  • Operating temperature: -40℃ to 85℃
  • Installation: Standard ADAM module, DIN rail mounting, stackable
  • Mechanical dimensions: 103×70×26 mm ( L*
Sale!

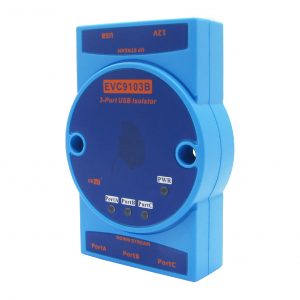

EVC9103B  USB 2.0 High Speed Isolator  1 To 3CH Speed Up to 480Mbps Without Display

EVC9103B USB 2.0 High Speed Isolator 1 To 3CH Speed Up to 480Mbps Without Display

Original price was: $99.00.Current price is: $69.00.

Features:

  • Industrial Grade USB2.0 Highspeed isolation technology without time delay;
  • Support Variety of USB Devices like Camera,USB Hard Disk;
  • Driver Free for Windows/MacOs/Linux
  • Support high-speed, full-speed, low-speed devices Max Speed Up to 480Mbps;
  • Four-layer board design,Up to 1500V isolation voltag;
  • Anti-static and anti-surge protection,Overcurrent and overvoltage protection;
  • Support 12V External Power Supply And 5V USB Internal Power Supply;
  • Input And Output Protection:
    • TVS Protectionfor Both Input And Output;
    • Switch-level up to 10us Short-Circuitfor output Protection;
    • ESD protectionfor both input port and the output port ;
Sale!

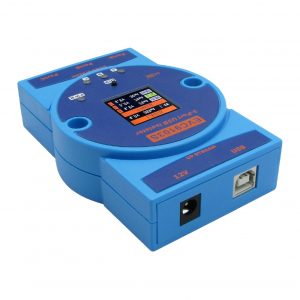

EVC9103S USB 2.0 High Speed Isolator  1 To 3CH Speed Up to 480Mbps With Display

EVC9103S USB 2.0 High Speed Isolator 1 To 3CH Speed Up to 480Mbps With Display

Original price was: $119.00.Current price is: $79.00.

Features:

  • Industrial Grade USB2.0 Highspeed isolation technology without time delay;
  • Support Variety of USB Devices like Camera,USB Hard Disk
  • Driver Free for windows/MacOs/Linux
  • Support high-speed, full-speed, low-speed devices Max Speed Up to 480Mbps;
  • Four-layer board design,Up to 1500V isolation voltag;
  • Anti-static and anti-surge protection,Overcurrent and overvoltage protection;
  • Support 12V External Power Supply And 5V USB Internal Power Supply;
  • Input And Output Protection:
    • TVS Protectionfor Both Input And Output;
    • Switch-level up to 10us Short-Circuitfor output Protection;
    • ESD protectionfor both input port and the output port ;
Sale!

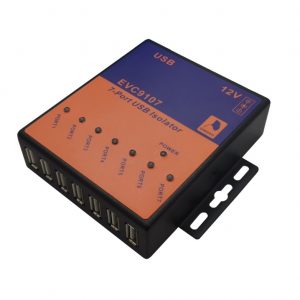

EVC9107,USB 2.0 High Speed Isolator 1 Channel To 7 Channels

EVC9107,USB 2.0 High Speed Isolator 1 Channel To 7 Channels

Original price was: $99.00.Current price is: $69.00.

Product Introduction

  • Provides electrical isolation for connected devices
  • 7 USB Output Ports
  • Supports USB 2.0 High-Speed, Full-Speed, and Low-Speed Devices
  • Internal PCB isolation with slots, power system 1500V isolation voltage
  • USB isolation chip with 3750V isolation voltage
  • Driverless operation
  • Suitable for USB hubs and extenders
  • No additional transmission delay
  • Built-in low-noise switching power supply
  • USB bus-powered or powered by an external 12V DC supply
  • Output port current limit of 1A
  • Input port: USB Type-B connector
  • Output ports: 7 USB Type-A ports
  • Switch-level short-circuit protection
  • Input and output ports include ESD protection
  • Supports Windows, Linux, macOS, Android, and Windows CE operating systems
  • 8 LED indicators
  • Metal enclosure
  • Operating temperature: -40 ~ 85 ℃
  • Dimensions: 103mm × 111 mm × 28mm (L×W×H), without buckle
  • Dimensions: 103mm × 111 mm × 37.4mm (L×W×H), with buckle
  • Weight: 322g without buckle, 350g with buckle
  • PCB thickness and layers: 1.6mm, 4 layers
  • Environmentally friendly and lead-free
