EVC8024

Original price was: $109.00.Current price is: $99.00.

Features:

  • BUELEC USB Converter Baud rate TTL(110~5Mbps),RS-232(110~1Mbps),RS-485/422(300~8Mbps),<br>Using ADI high performance magnetic decoupling isolation program

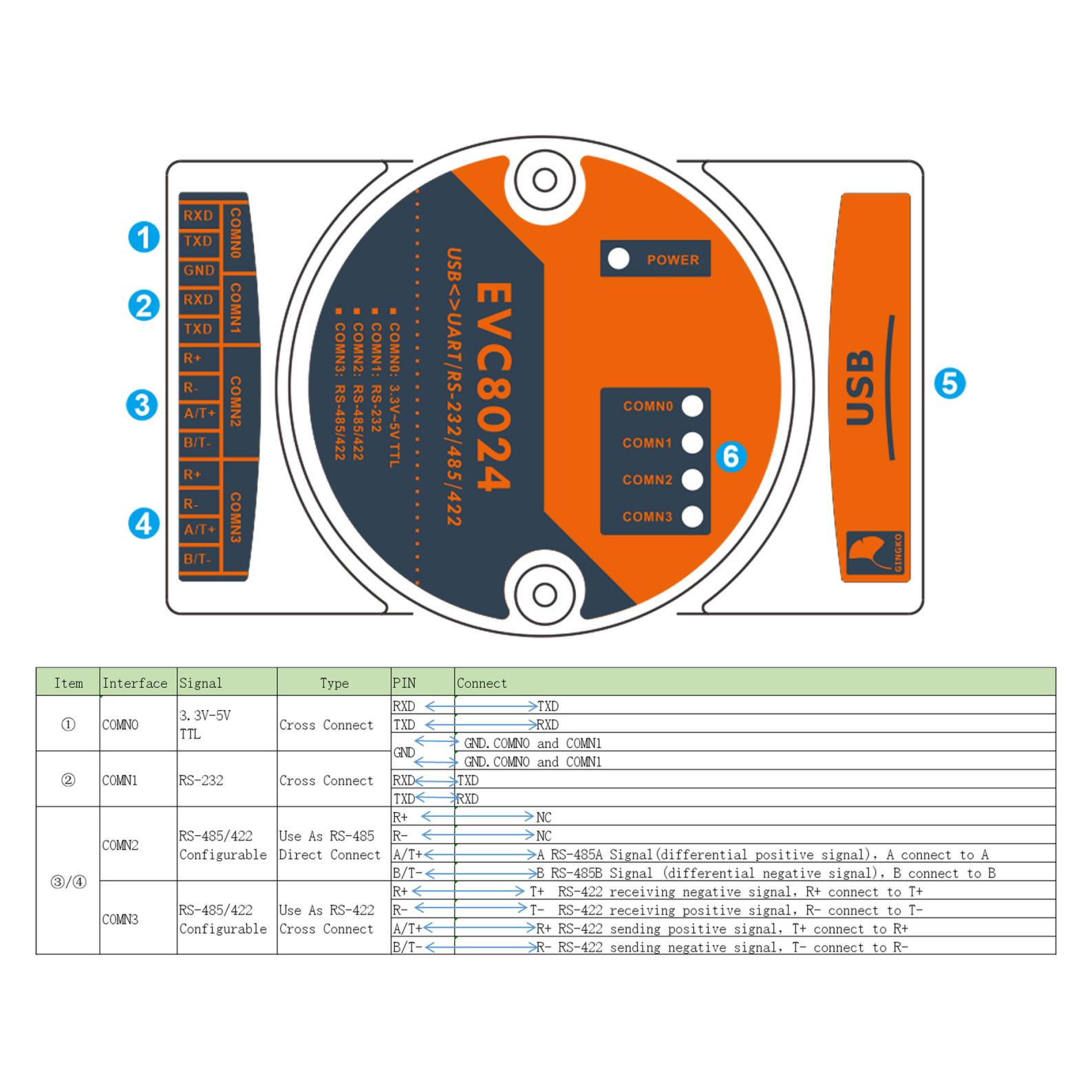

  • BUELEC USB Converter Output interface Standard TTL, RS-232(Full-duplex),RS-485(Half-duplex),RS-422(Full-duplex)
  • BUELEC USB Converter Isolation voltage Using ADI high performance magnetic decoupling isolation program
  • BUELEC USB Converter Power supply instructions,sending instructions,receiving instrutions
  • BUELEC USB Converter Support Windows,Linux,MAC,Android,Windows CE

Software:

Product Documents

Category: SKU: EVC8024

Description

Description:

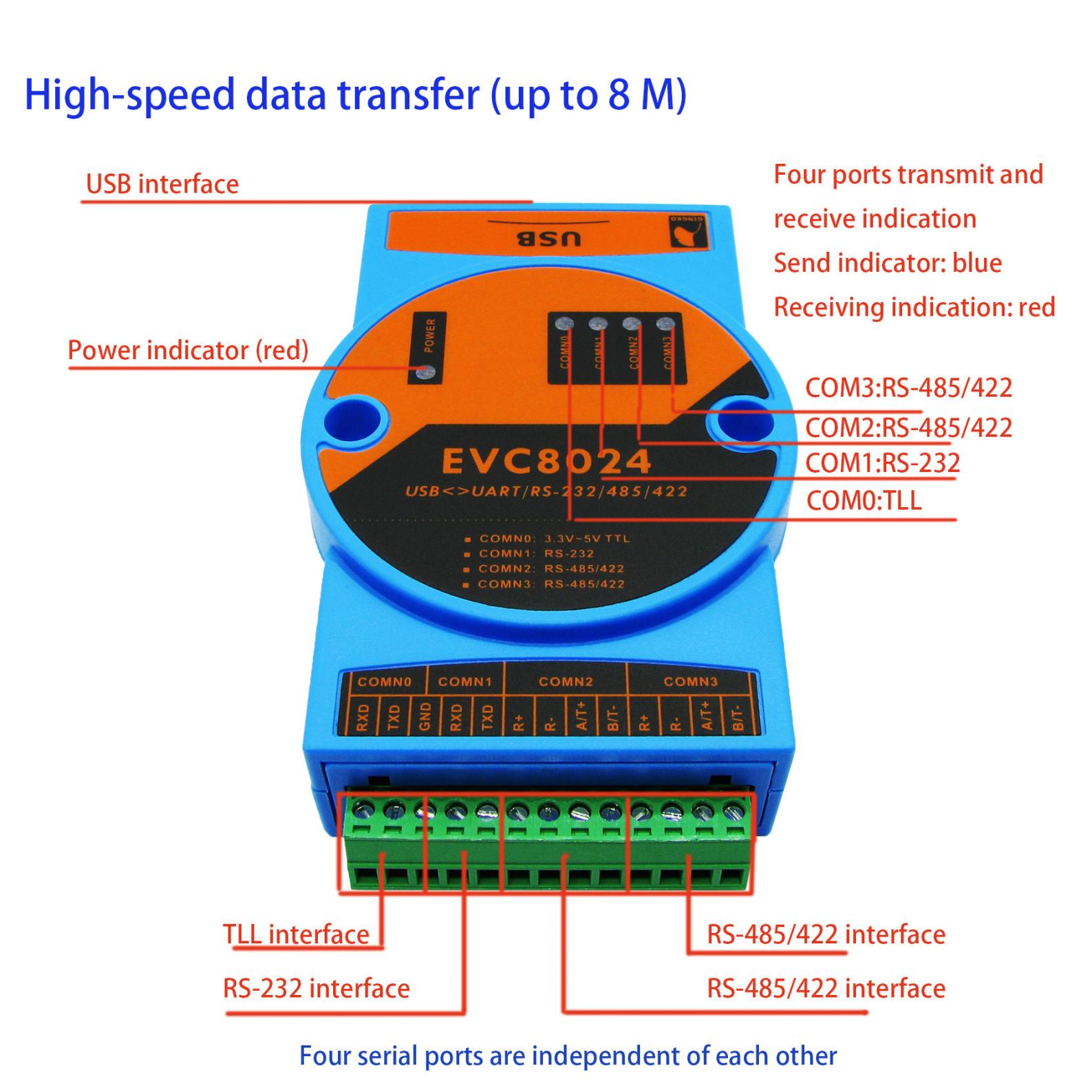

  • USB-232-485-422-TTL-Converter High-speed (USB↔TTL、RS-232、RS-485/422) Isolation Interface Converter (hereinafter referred to as converter)；

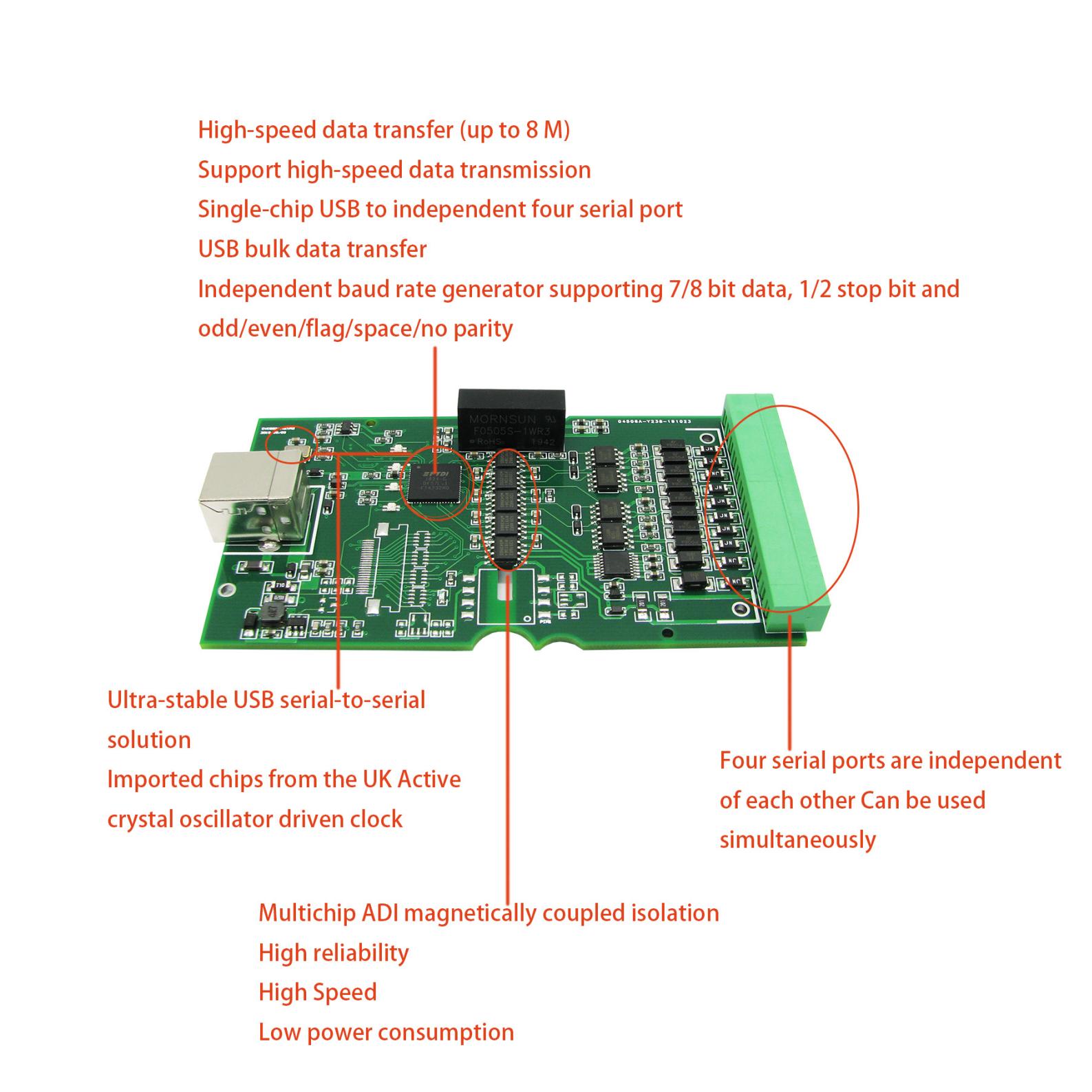

  • The converter is using Full Galvanic Isolations scheme and proprietary technology to achieve two-way,independent data exchange between high-speed USB and TTL、RS-232、RS-485/422；

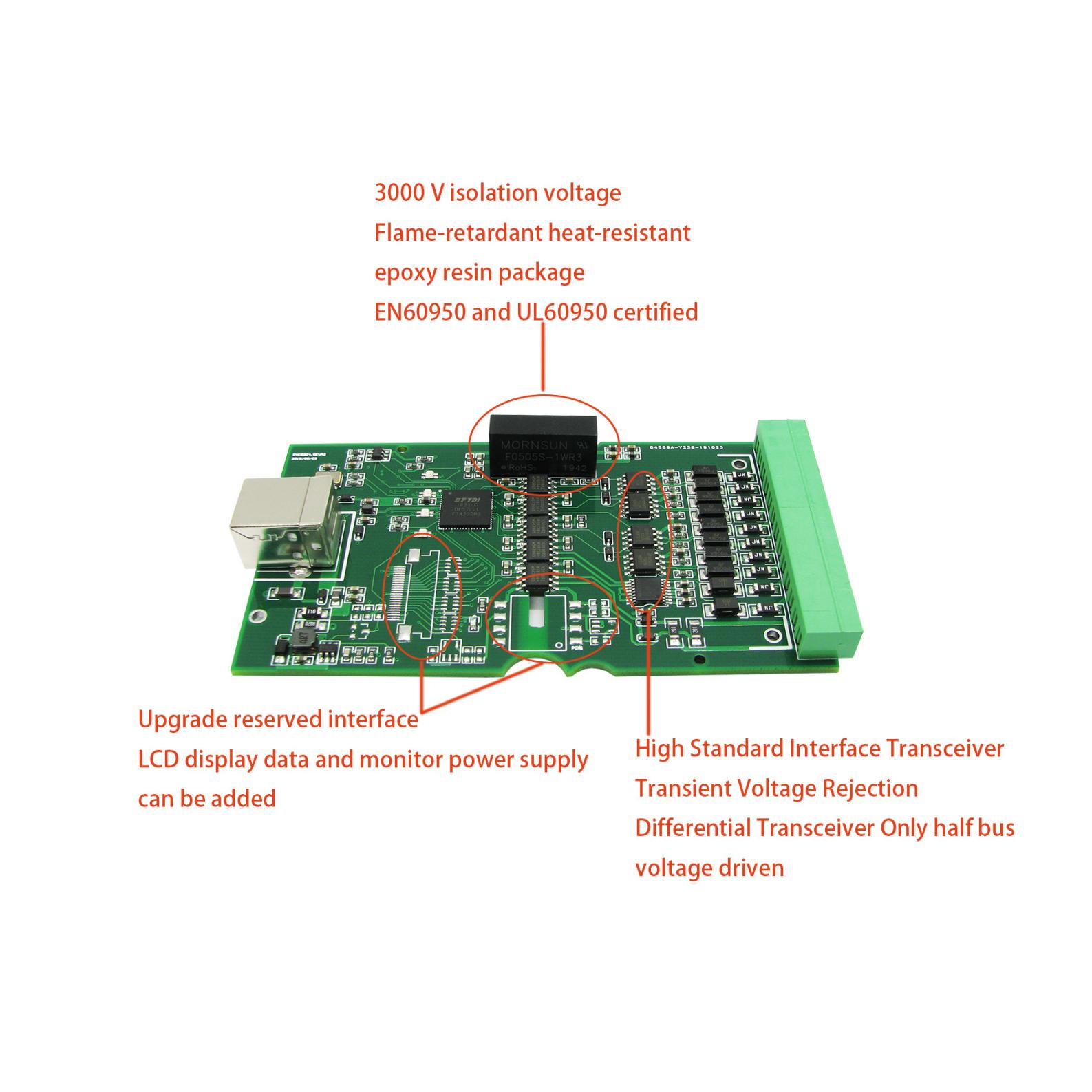

  • The converter is powered by USB, and built-in 3000 V dual isolation power module, which makes the power supply input and communication interface completely electrically isolated, and provides hardware guarantee for safe transmission and interface performance.

What’s in the box:

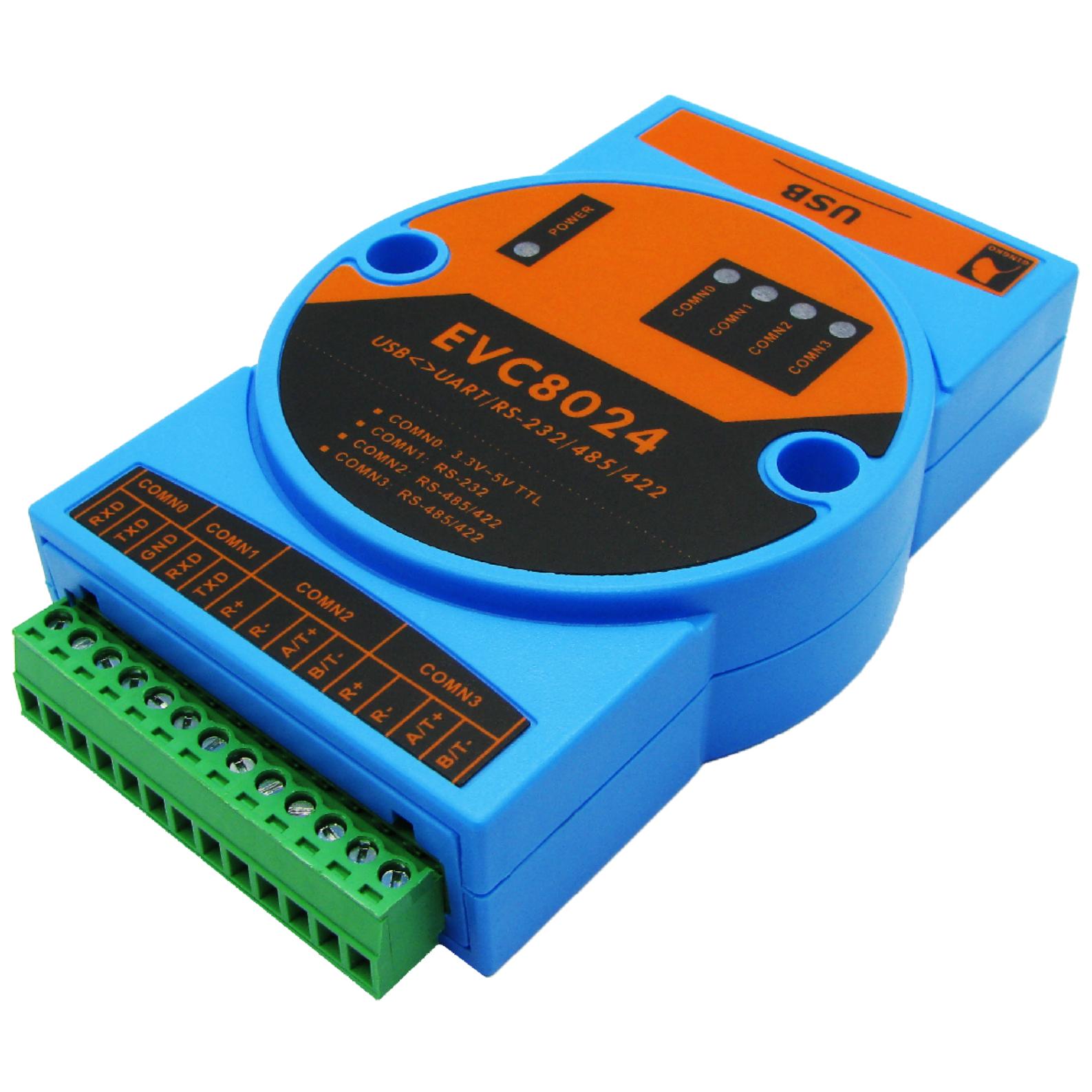

  • EVC8024 USB TO TTL/RS-232/dual RS-485/422 Magnetic coupling isolation converter*1 pcs
  • USB Cable*1 pcs
  • Porduct manual*1 pcs
