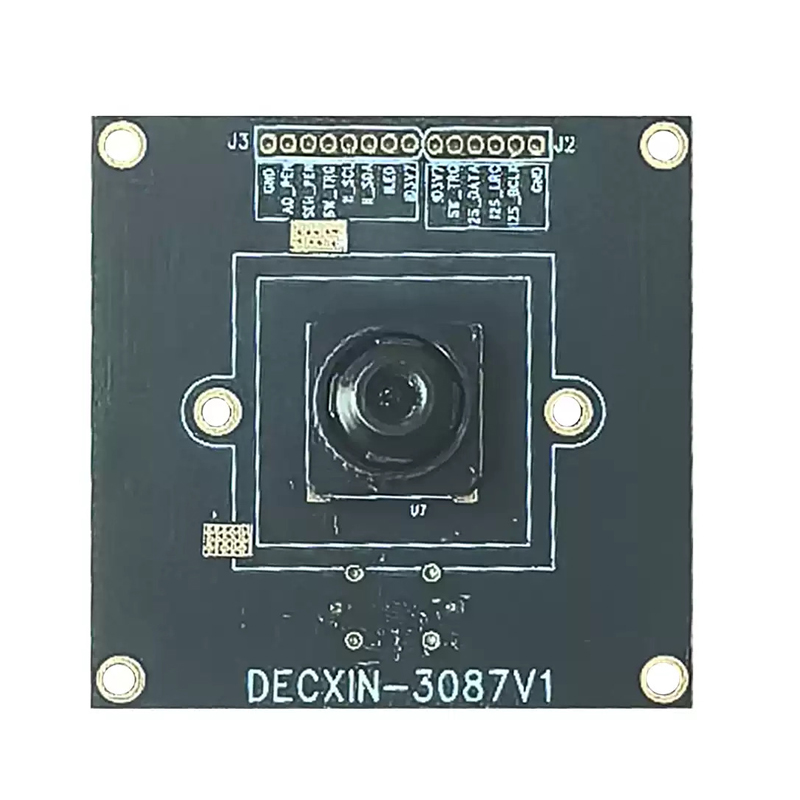

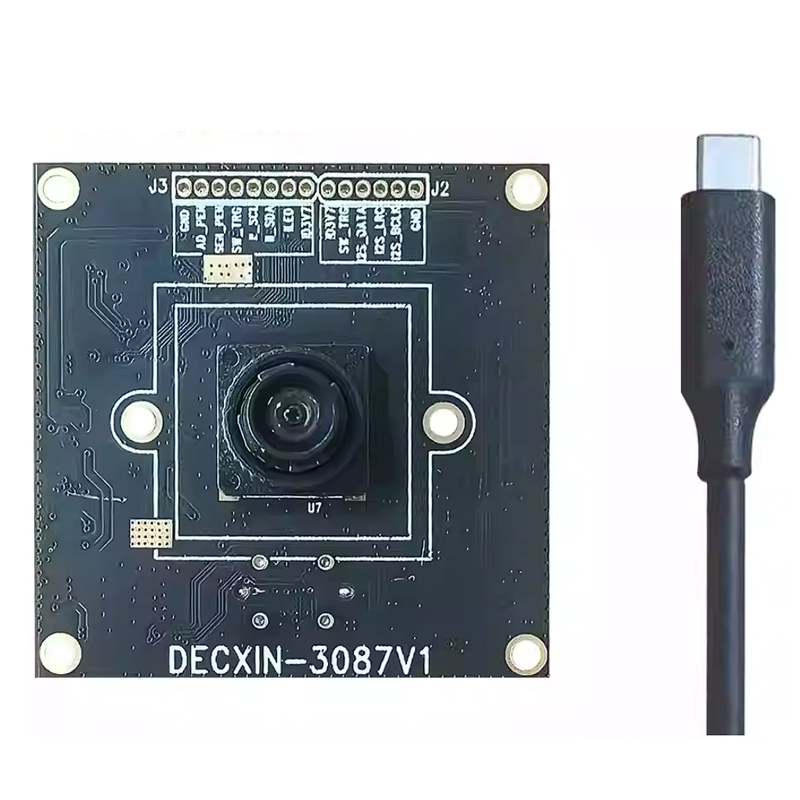

U30-CAM-IMX230AF – 21MP USB3.0 UVC Ultra-Fast Autofocus Camera Module – Genuine Sony IMX230 The U30-CAM-IMX230AF is a professional-grade 21-megapixel USB3.0 UVC camera module built around the genuine original Sony IMX230 Exmor RS stacked CMOS sensor with 192-point on-chip phase-detection autofocus (PDAF) + high-performance VCM motor. It is equipped with a fast F1.79 aperture, 4.74mm focal length autofocus lens delivering 67.2° horizontal field of view (HFoV) and ultra-low optical distortion <1.5%, providing bright, sharp and natural-looking images across the entire frame. Ultra-fast and accurate autofocus (<0.3 s) combined with excellent low-light performance and native Staggered HDR makes it ideal for document scanning, medical imaging, high-end video conferencing, industrial inspection, AI vision and any application that demands both extreme resolution and reliable focusing speed.
Fully compliant with UVC 1.5 over USB 3.0 (5 Gbps), truly driver-free plug-and-play on Windows, Linux, Android, macOS, Raspberry Pi, Jetson, Rockchip and all major embedded platforms.
2 Features
- Genuine Sony IMX230 21MP Sensor – 1/2.4″ Exmor RS stacked CMOS, 192-point PDAF + VCM autofocus, native Staggered HDR
- Ultra-Fast Hardware Autofocus – VCM motor + 192-point phase detection, focus time <0.3s, continuous AF capable
- True USB3.0 UVC 1.5 Plug-and-Play – Full 5 Gbps bandwidth, no drivers needed on any major OS or embedded platform
- High-Performance Stable Output – 5344×4016 @10fps MJPEG, 4K@30fps rock-solid, 1080p@60fps capable, zero frame drops on USB3.0
- Industrial-Grade Design & Compatibility – Compact 38×38mm board, 4×M2.5 mounting holes (32mm centers), genuine Sony sensor, full parameter control, wide temperature range
- Bright & Wide Autofocus Lens – F1.79 large aperture, 4.74mm focal length, 67.2° HFoV, TV distortion <1.5%, excellent edge sharpness and low-light brightness
3 Specifications
- Sensor & Image Quality
| Parameter | Specification |
| Image Sensor | Genuine Sony IMX230 Exmor RS stacked CMOS |
| Sensor Size | 1/2.4″ (diagonal ≈7.487mm) |
| Active Pixels | 5344(H) × 4016(V) – 21 Megapixels |
| Pixel Size | 1.12μm × 1.12μm |
| SNR | 39.9 dB |
| Dynamic Range | 73 dB |
| Sensitivity | 1.4 V/lux-sec @550nm |
| Minimum Illumination | 0.5 lux (color) |
| HDR Support | Staggered HDR (native sensor support) |
| Center Resolution | ≥800 LW/PH |
- Focus & Optics
| Parameter | Specification |
| Focus Type | VCM Autofocus + 192-point on-chip PDAF (<0.3 s focus acquisition, continuous AF supported) |
| Focal Length | 4.74 mm |
| Aperture | F1.79 |
| Horizontal FOV (HFoV) | 67.2° (±3°) |
| Vertical FOV (VFoV) | 53.2° (±3°) |
| Diagonal FOV (DFoV) | 79.4° (±3°) |
| Optical Distortion | < 1.5% (TV distortion < 1.0%) |
| Relative Illumination | ≥ 70% (corner brightness) |
| Lens Mount | M12 × P0.5 (metal) |
| Lens Format | 1/2.4 inch (supports 16:9 and 4:3) |
| Chief Ray Angle (CRA) | Fully matched to IMX230 sensor |
| Shutter Type | Rolling Shutter |
- Video Output & Performance
| Parameter | Specification |
| Output Formats | MJPEG / YUY2 (YUYV) |
| Supported Resolutions & Frame Rates (USB3.0) | 5344×4016 @10fps MJPEG / @5fps YUY2 5120×3840 @10fps MJPEG / @5fps YUY2 3840×2160 @30fps MJPEG / @10fps YUY2 3264×2448 @30fps MJPEG / @10fps YUY2 2592×1944 @30fps MJPEG / @10fps YUY2 1920×1080 @60fps MJPEG / @30-60fps YUY2 1600×1200 @30fps MJPEG / YUY2 1280×720 @60fps+ MJPEG / YUY2 640×480 @30fps MJPEG / YUY2 |
- Interface & Controls
| Parameter | Specification |
| Interface | USB 3.0 Type-C (vertical socket, centered at bottom, 5 Gbps, backward compatible USB2.0) |
| Protocol | UVC 1.5 (full compliance, driver-free plug-and-play) |
| AEC / AWB / AGC | Fully supported |
| Adjustable Parameters | Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure, Gain, Backlight Compensation, Power Line Frequency, etc. |
| Device Name |
- Power & Electrical
| Parameter | Specification |
| Power Supply | USB 5V bus power |
| Operating Current | 80–240 mA normal, peak 320 mA during AF operation |
| Standby Current | ≤10 mA |
- Environmental & Physical
| Parameter | Specification |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -30°C to +85°C |
| PCB Dimensions | 38mm × 38mm square board |
| PCB Height | 8.6 mm or 7.7 mm (±0.2 mm, depending on lens batch) |
| Total Height with Lens | ≈34 mm (FOV lens-dependent) |
| Mounting Holes | 4 × M2.5, 32 mm center-to-center |
| Weight | ≈15–18 g |
| Standard Cable | 1 meter USB3.0 |
| Optional Cables | 2m / 3m / 5m shielded USB3.0 cables |
- Compatibility
| Parameter | Specification |
| Supported OS | Windows XP/Vista/7/8/10/11 Linux (UVC kernel 2.6.26+) macOS 10.4.8+ Android 4.0+ with UVC support Raspberry Pi, Jetson Nano/Xavier, Rockchip RK series, NVIDIA Orin, etc. |
