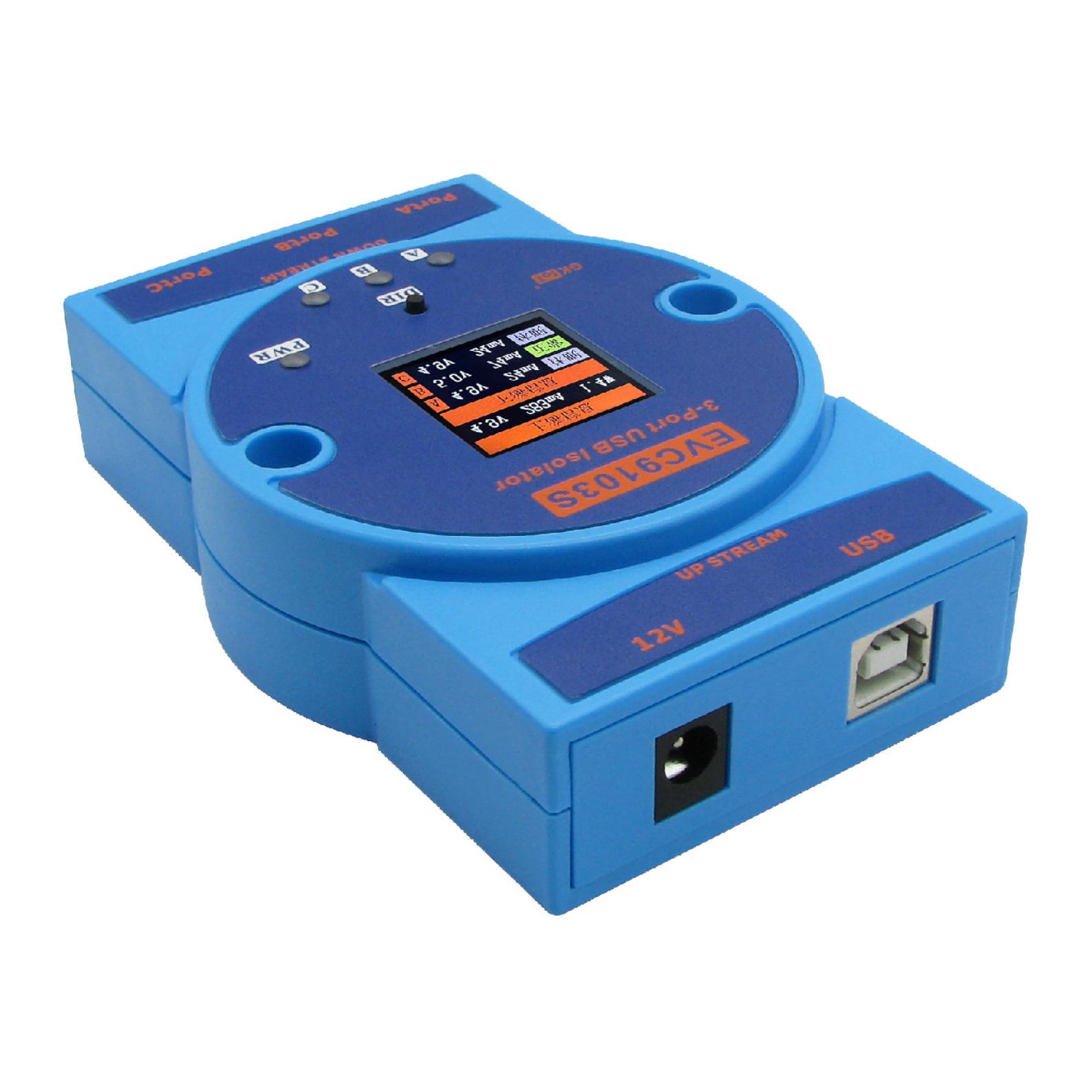

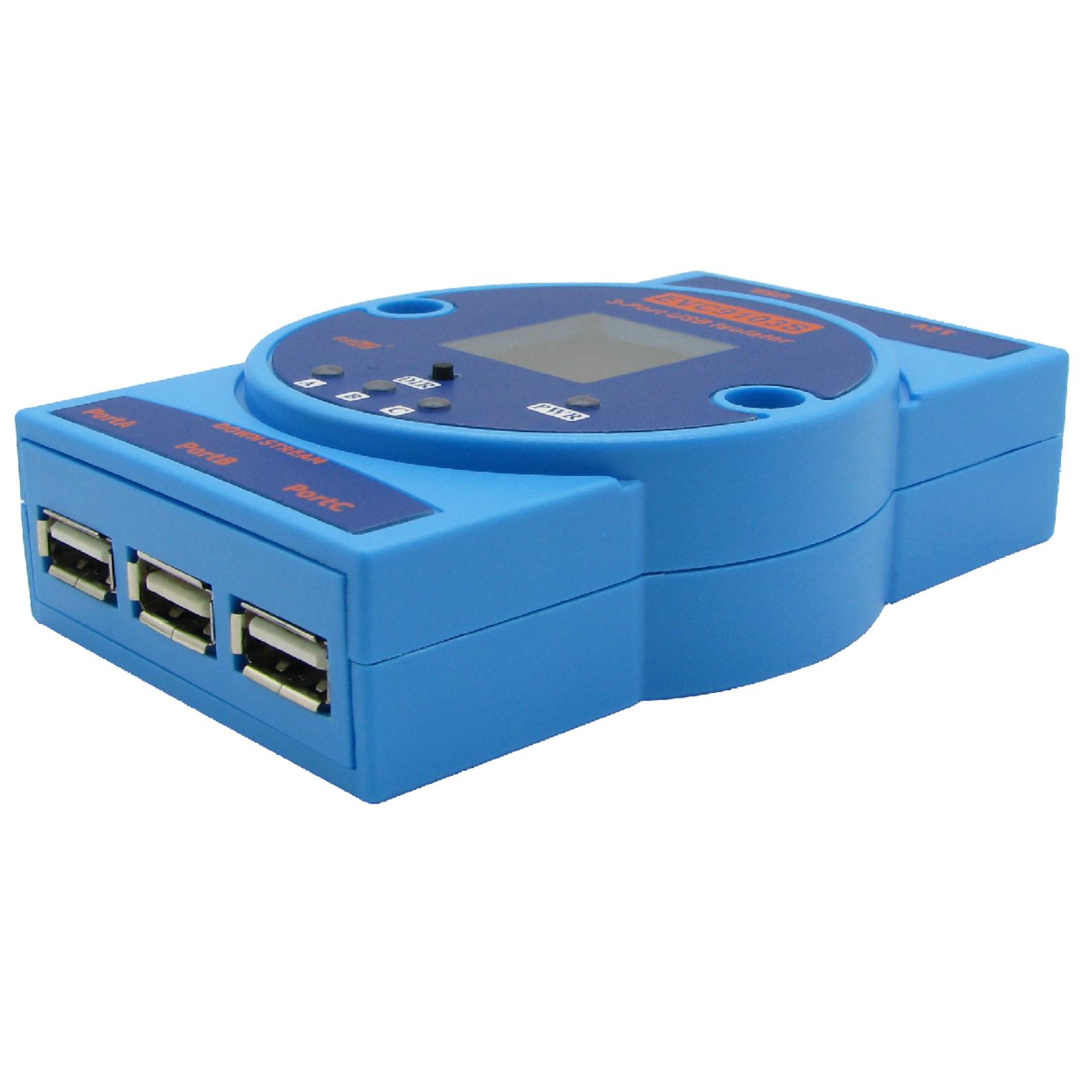

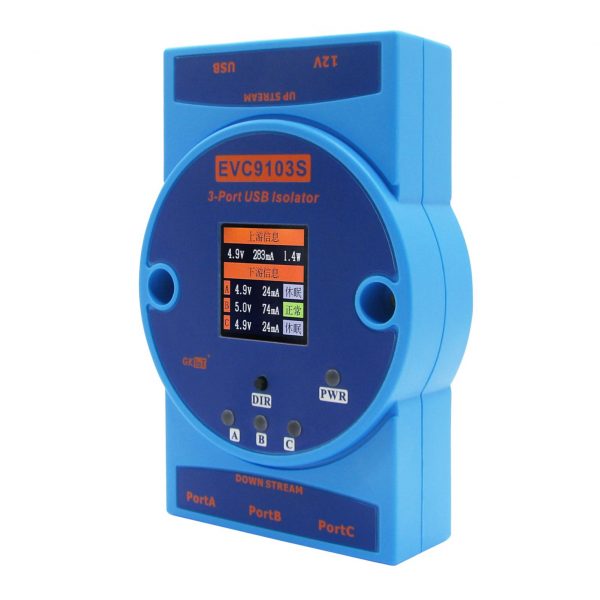

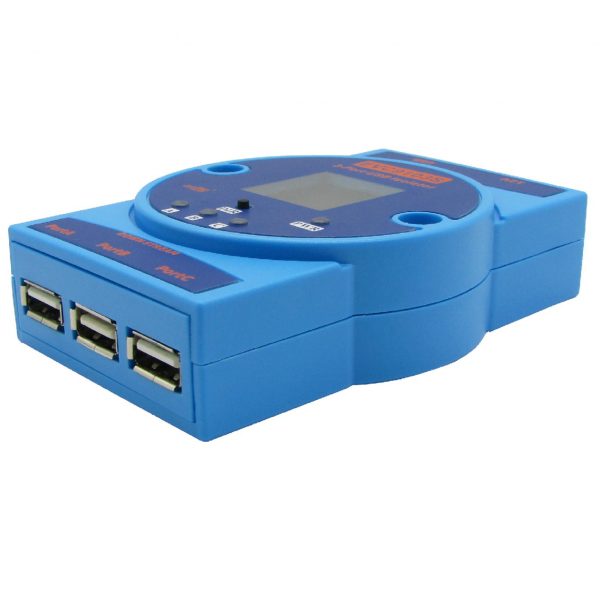

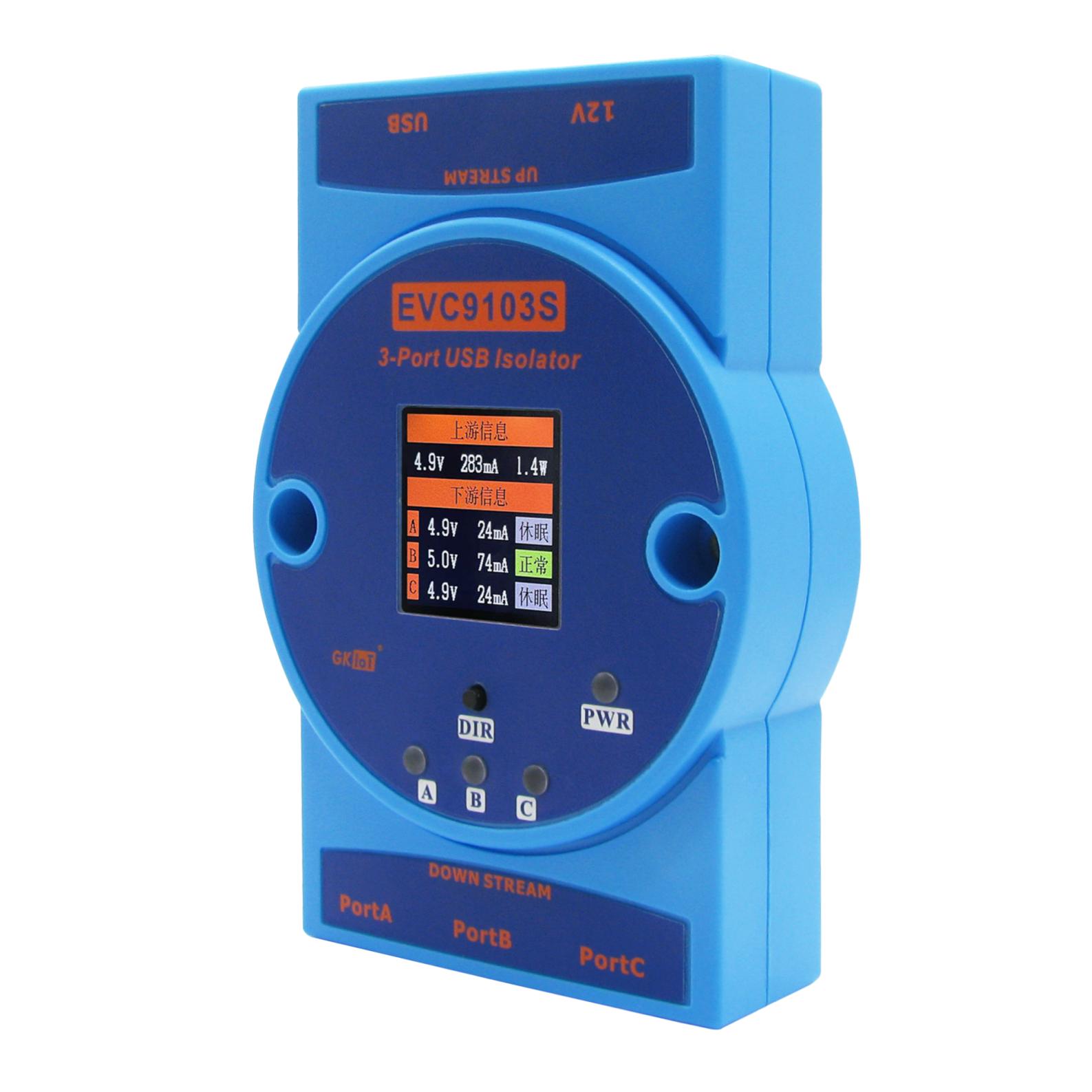

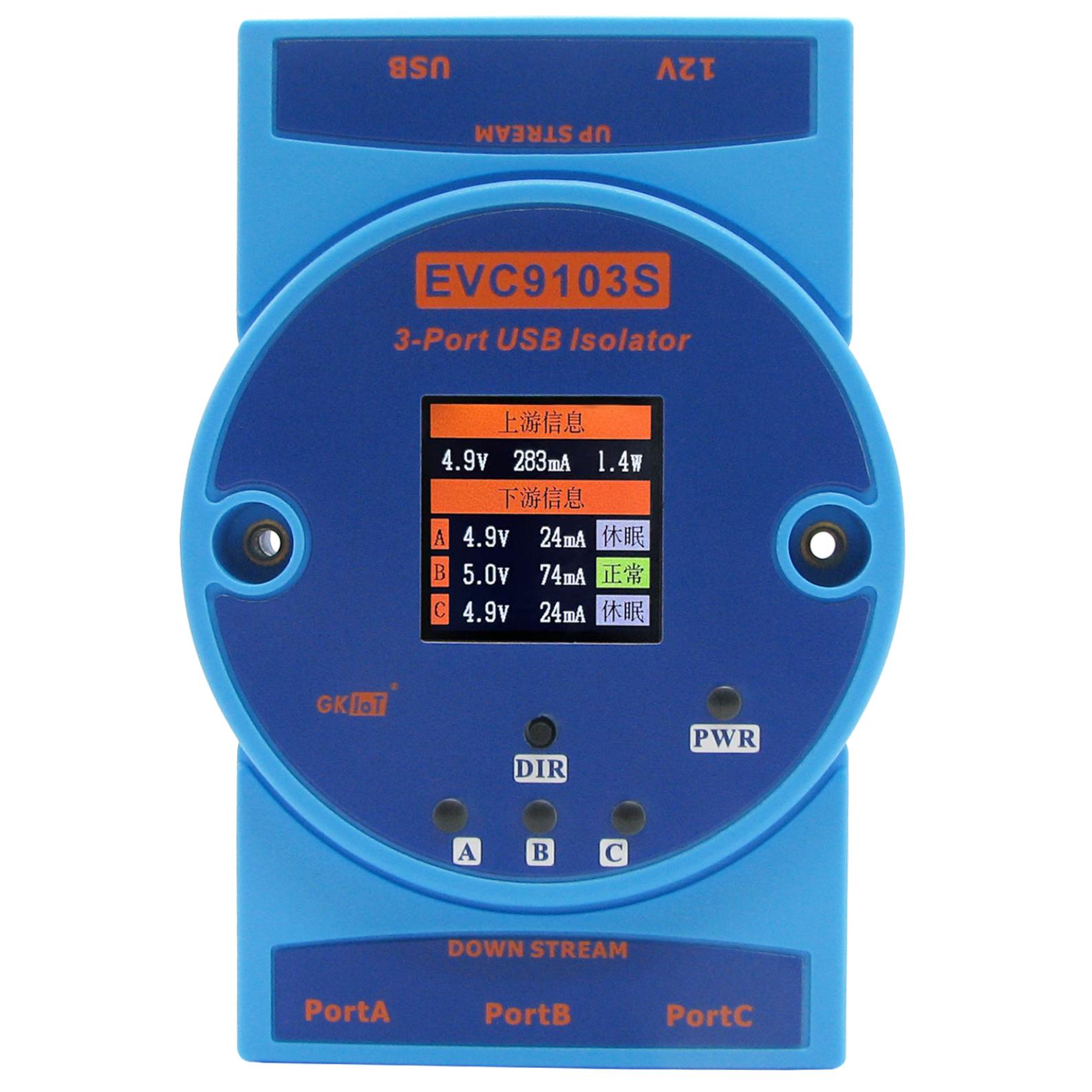

EVC9103S High Speed USB2.0 Isolator With Screen

Original price was: $159.00.Current price is: $119.00.

Features:

  • Industrial Grade USB2.0 Highspeed isolation technology without time delay;
  • Support Variety of USB Devices like Camera,USB Hard Disk
  • Driver Free for windows/MacOs/Linux
  • Support high-speed, full-speed, low-speed devices Max Speed Up to 480Mbps;
  • Four-layer board design,Up to 1500V isolation voltag;
  • Anti-static and anti-surge protection,Overcurrent and overvoltage protection;
  • Support 12V External Power Supply And 5V USB Internal Power Supply;
  • Input And Output Protection:
    • TVS Protectionfor Both Input And Output;
    • Switch-level up to 10us Short-Circuitfor output Protection;
    • ESD protectionfor both input port and the output port ;

Product Documents

Description

EVC9103S High Speed USB2.0 Isolator With Screen

Features:

  • Industrial Grade USB2.0 Highspeed isolation technology without time delay;
  • Support Variety of USB Devices like Camera,USB Hard Disk
  • Driver Free for windows/MacOs/Linux
  • Support high-speed, full-speed, low-speed devices Max Speed Up to 480Mbps;
  • Four-layer board design,Up to 1500V isolation voltag;
  • Anti-static and anti-surge protection,Overcurrent and overvoltage protection;
  • Support 12V External Power Supply And 5V USB Internal Power Supply;
  • Input And Output Protection:
    • TVS Protectionfor Both Input And Output;
    • Switch-level up to 10us Short-Circuitfor output Protection;
    • ESD protectionfor both input port and the output port ;

Specification:

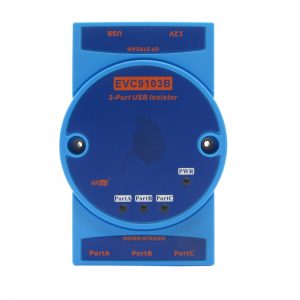

Technical parameter EVC9103B EVC9103S
Supported devices Compatible with High-speed;Full-speed;Low-speed USB Device;
Power Supply 5V USB power supply Default;

Or ADD External 12V DC Power supply;

Output voltage: 5V
Output current: Maximum 1A;
Power Consumption 230mA 240mA
ESD Protection IEC61000-4-2(ESD)+-15KV

+-8KV

Input Connector One USB-B port
Output Connector Three USB-A ports
Display: Not Support Liquid crystal display
Working Temperature -20℃~70℃ -45℃-85℃
Mechanical size: 103X70X26(mm);(LXWXH);
Weight: 345g
Installation method: Standard Adam module,

rail installation

stackable;

Operating system Windows,

Linux,

MAC,

Android.,

Windows CE
