Description

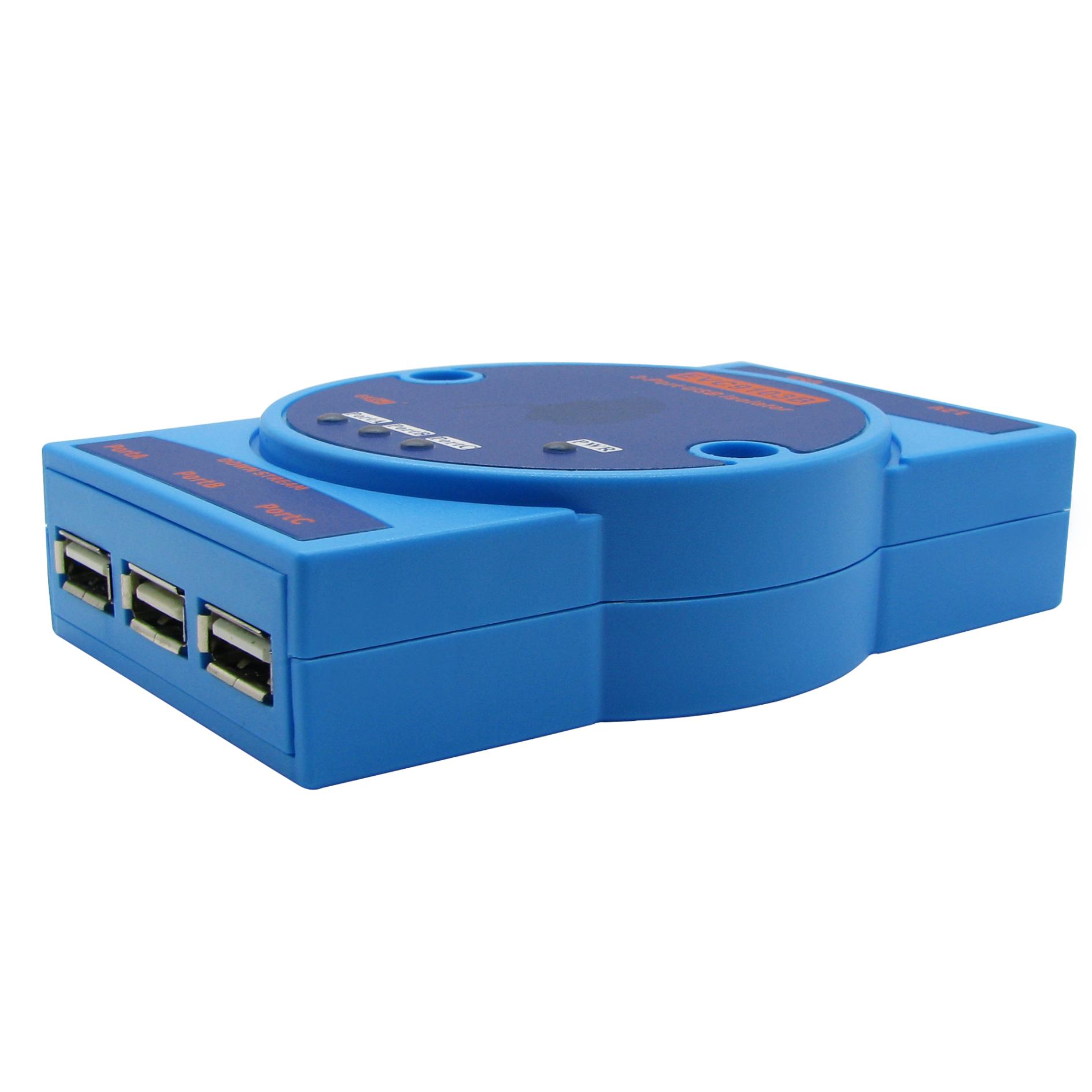

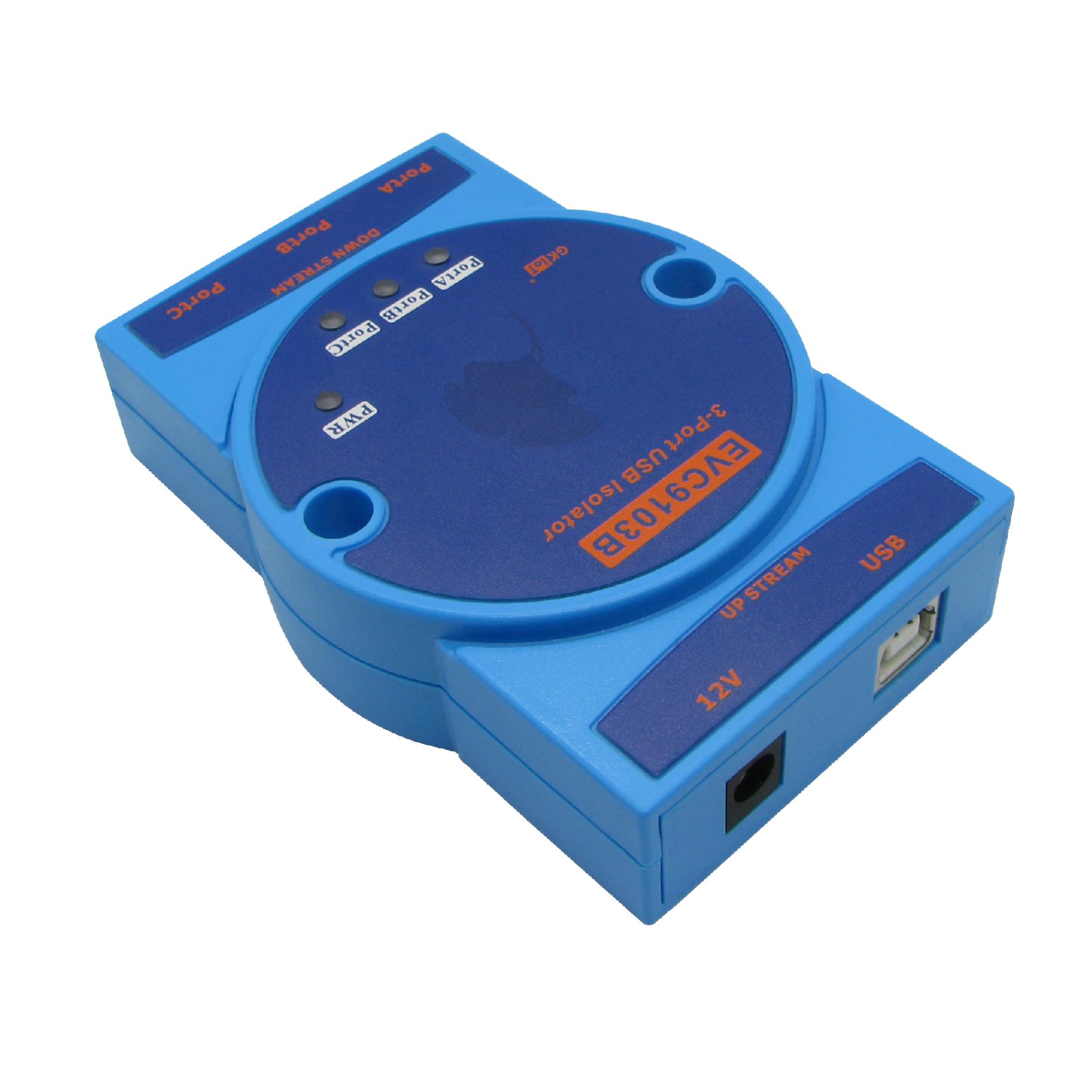

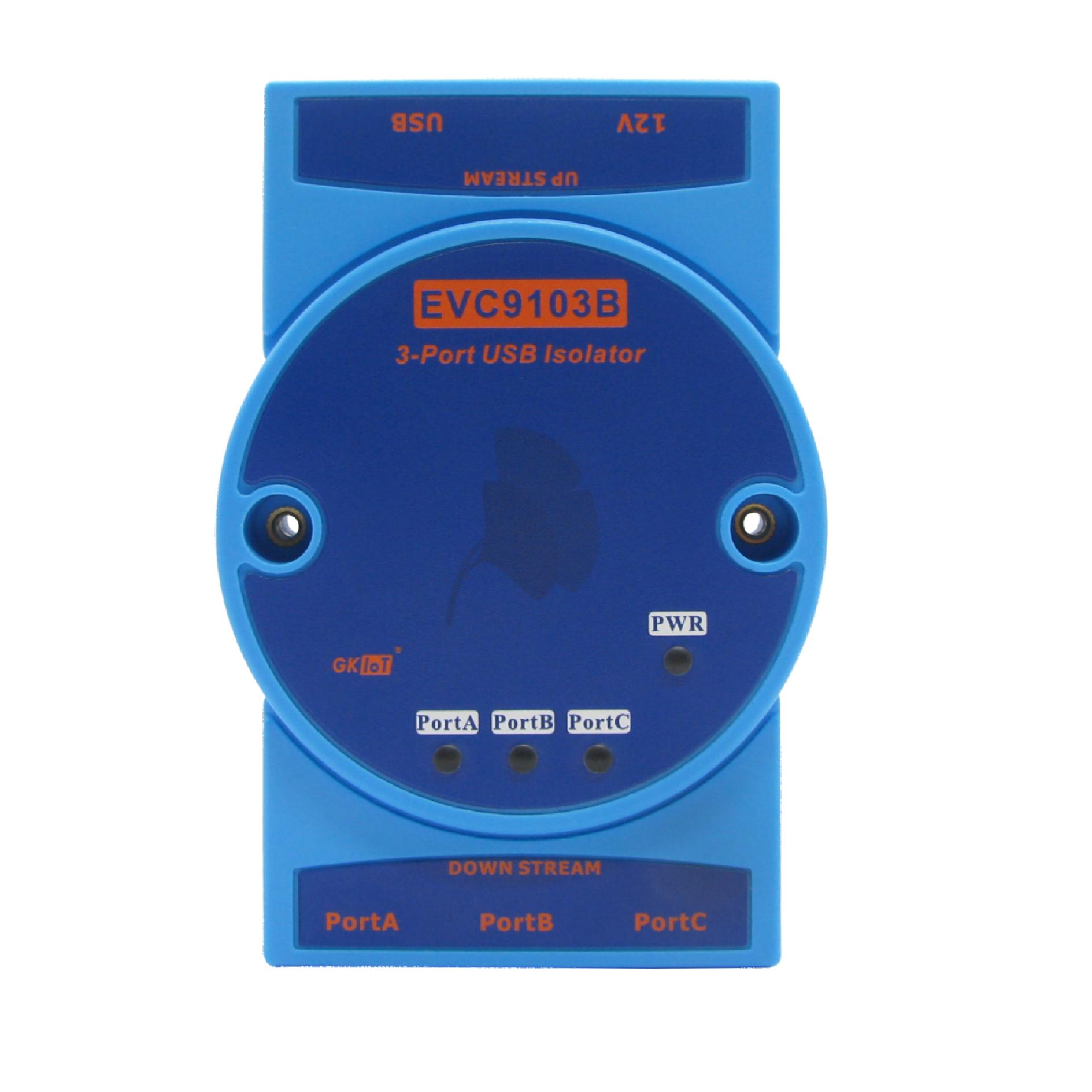

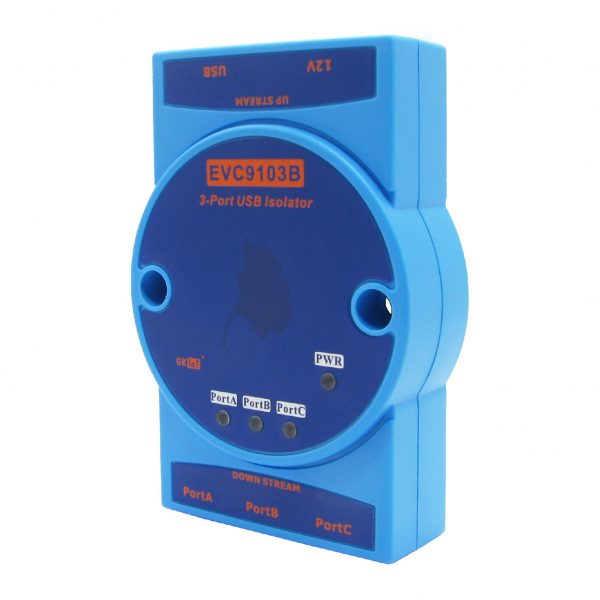

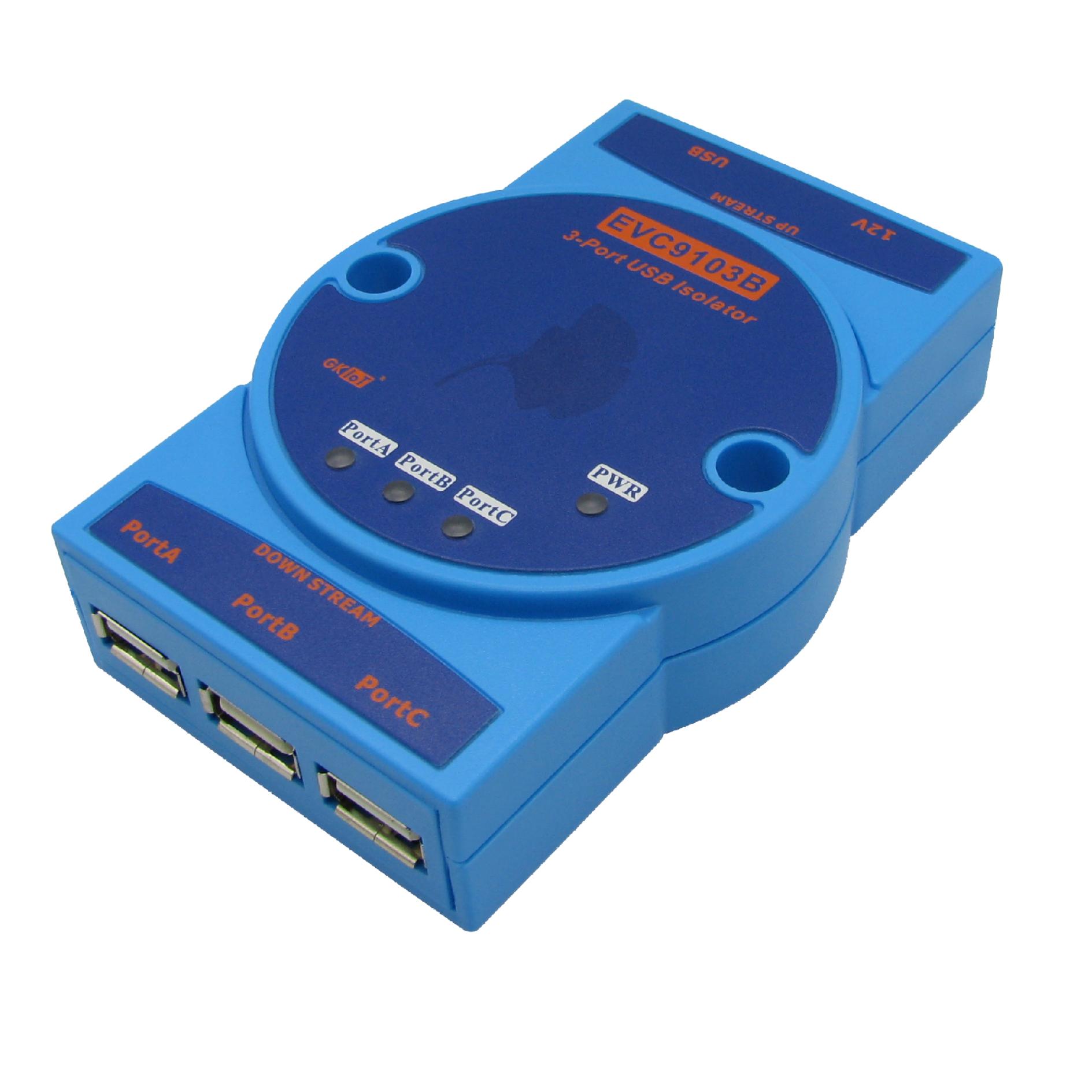

EVC9103B/EVC9103S 1 turn 3 High Speed USB 2.0 Isolator Speed Up to 480Mbps
Features:
- Industrial Grade USB2.0 Highspeed isolation technology without time delay;
- Support Variety of USB Devices like Camera,USB Hard Disk
- Driver Free for windows/MacOs/Linux
- Support high-speed, full-speed, low-speed devices Max Speed Up to 480Mbps;
- Four-layer board design,Up to 1500V isolation voltag;
- Anti-static and anti-surge protection,Overcurrent and overvoltage protection;
- Support 12V External Power Supply And 5V USB Internal Power Supply;
- Input And Output Protection:
- TVS Protectionfor Both Input And Output;
- Switch-level up to 10us Short-Circuitfor output Protection;
- ESD protectionfor both input port and the output port ;
Specification:
| Technical parameter | EVC9103B | EVC9103S |
| Supported devices | Compatible with High-speed;Full-speed;Low-speed USB Device; | |
| Power Supply | 5V USB power supply Default;
Or ADD External 12V DC Power supply; |
|
| Output voltage: | 5V | |
| Output current: | Maximum 1A; | |
| Power Consumption | 230mA | 240mA |
| ESD Protection | IEC61000-4-2(ESD)+-15KV
+-8KV |
|
| Input Connector | One USB-B port | |
| Output Connector | Three USB-A ports | |
| Display: | Not Support | Liquid crystal display |
| Working Temperature | -20℃~70℃ | -45℃-85℃ |
| Mechanical size: | 103X70X26(mm);(LXWXH); | |
| Weight： | 345g | |
| Installation method: | Standard Adam module,
rail installation stackable; |
|
| Operating system | Windows,
Linux, MAC, Android., Windows CE |
|
