Description

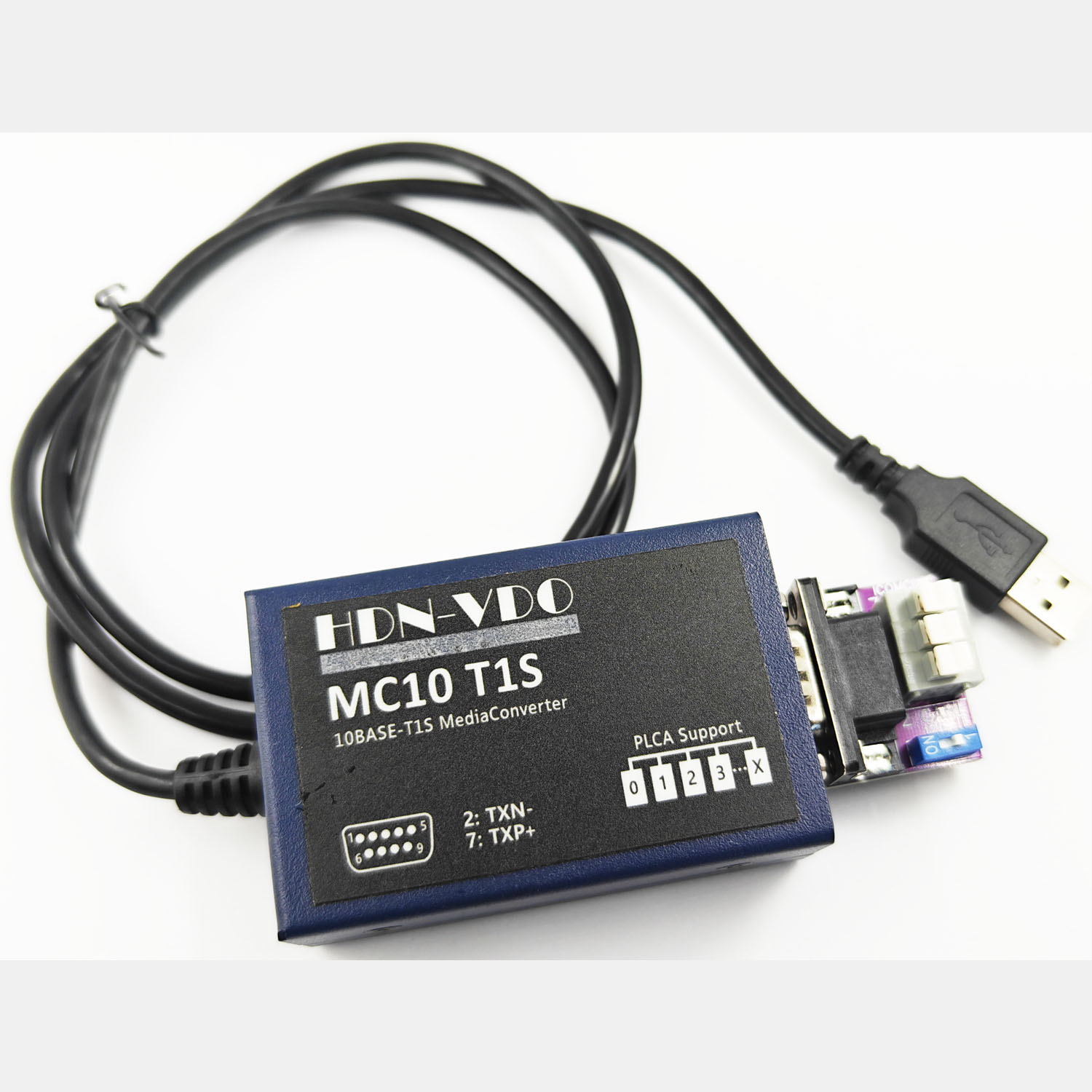

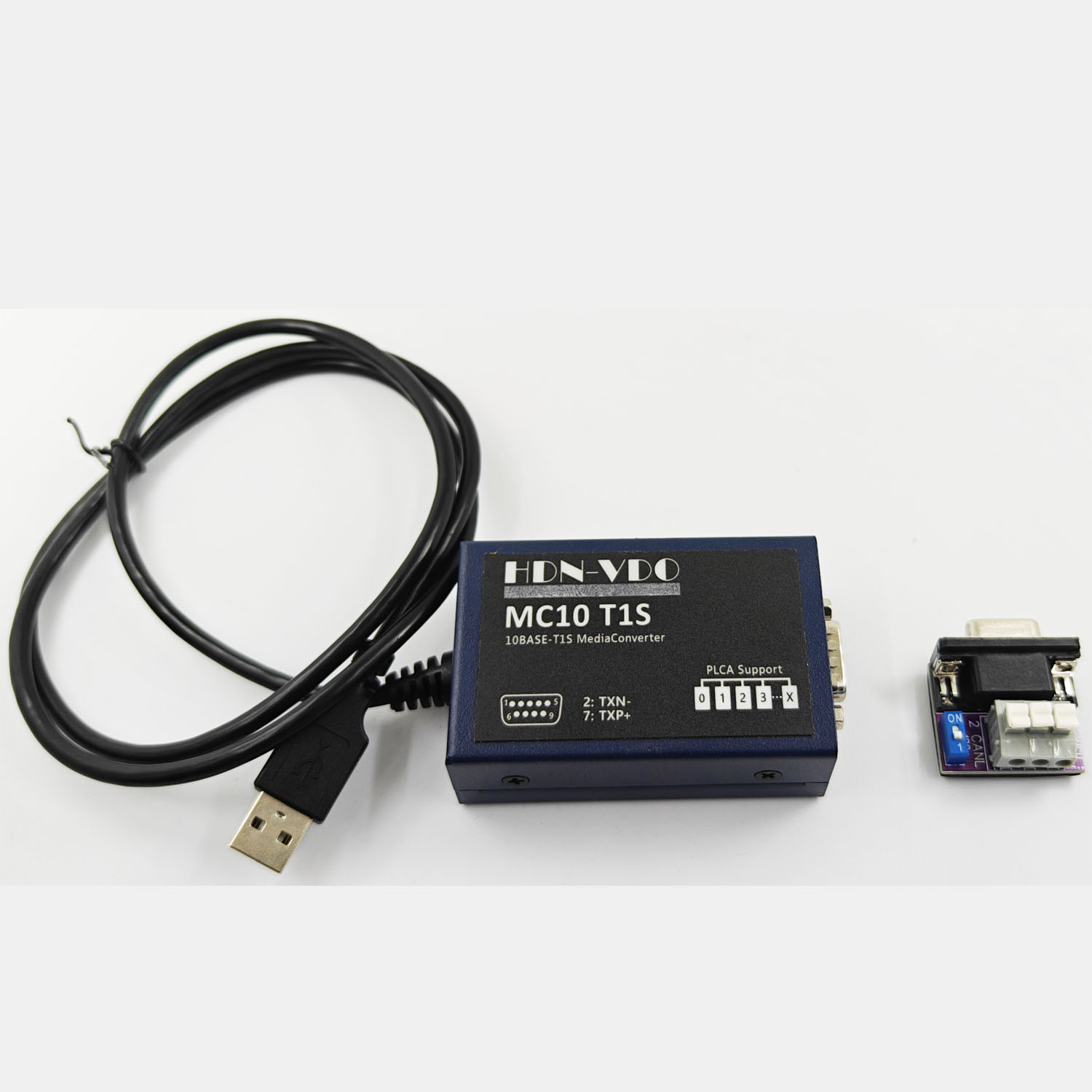

10BASE-T1S CONVERTER

Description:

• 10BASE-T1S converters support Multidrop bus line and Point-to-Point.
• DB9 connector support PLCA.
• 10BASE-T1S is IEEE 802.3cg standard,Use UTP for communication.
• Supports a data rate of up to 10 Mbps for a single twisted pair cable, suitable for up to 25 meters of full/half duplex networks, aiming to achieve collision free and deterministic transmission on multi-point networks.

Characteristic：

• – USB power supply, PLCA endpoint control with USB Ethernet adapter.
• – Temperature range: -40 ℃ to+85 ℃
• – Power：100mW；
• – Speed：10Mbit/s
• – Industrial control, robotics, and automotive network data collection
• – 77x50x26.5mm
