Description

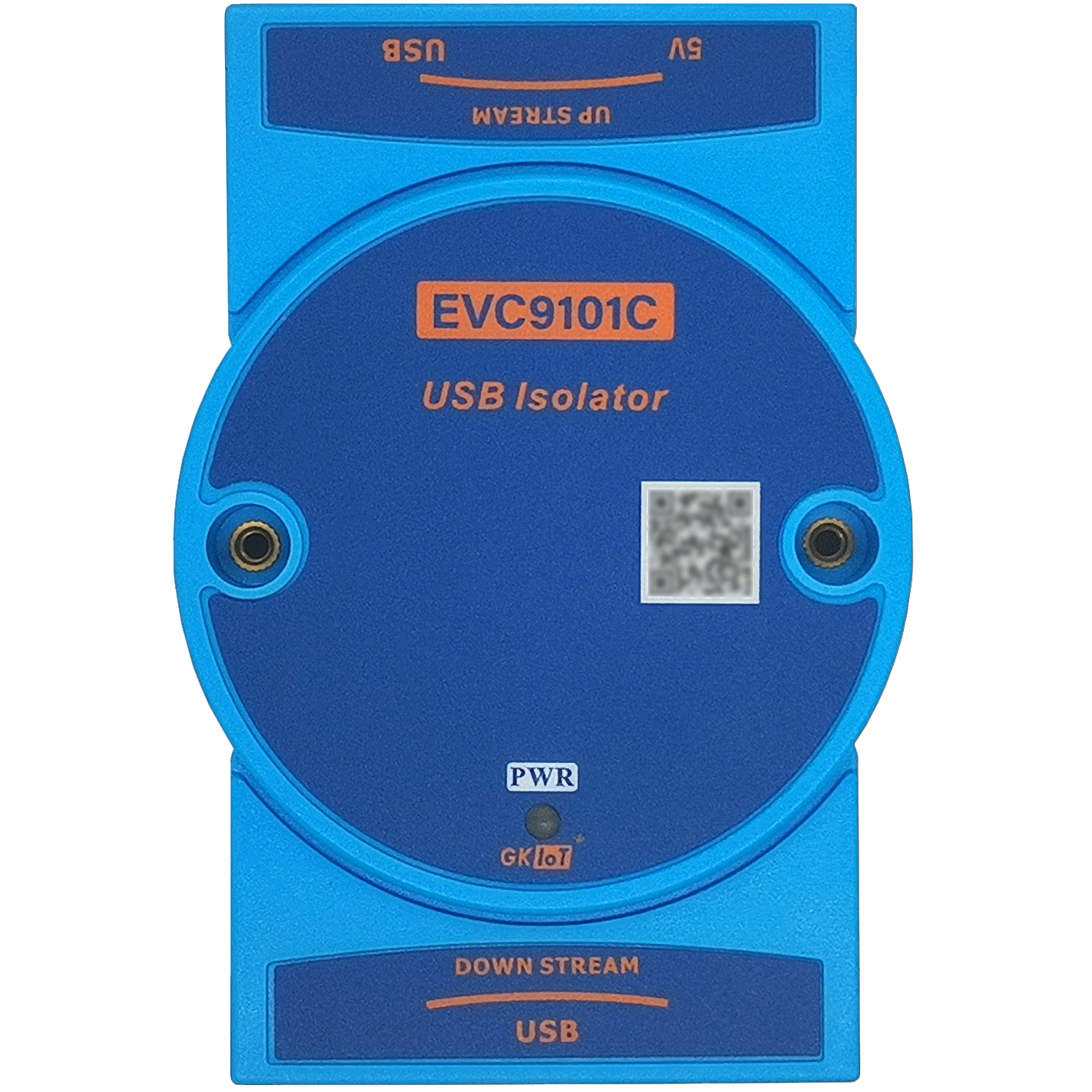

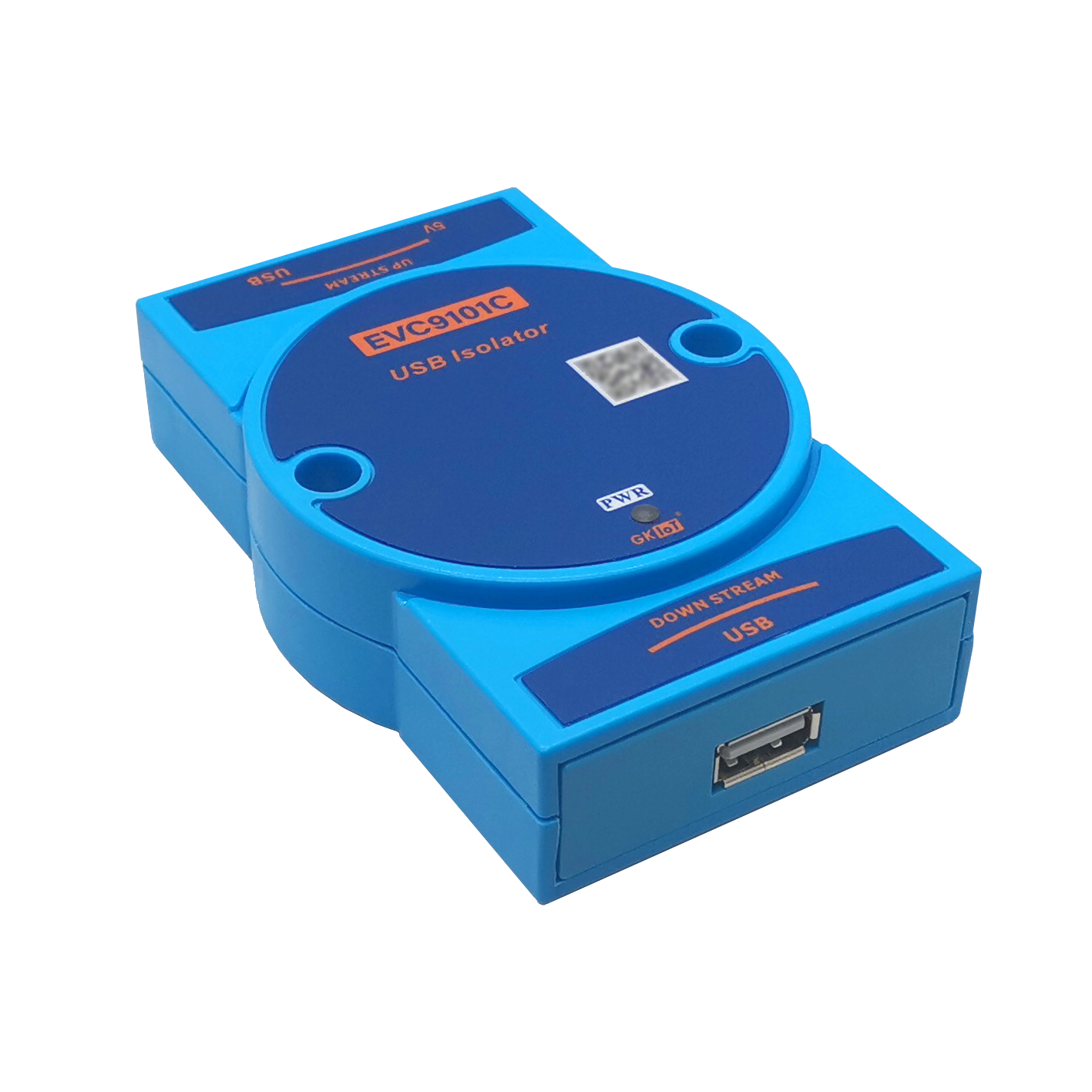

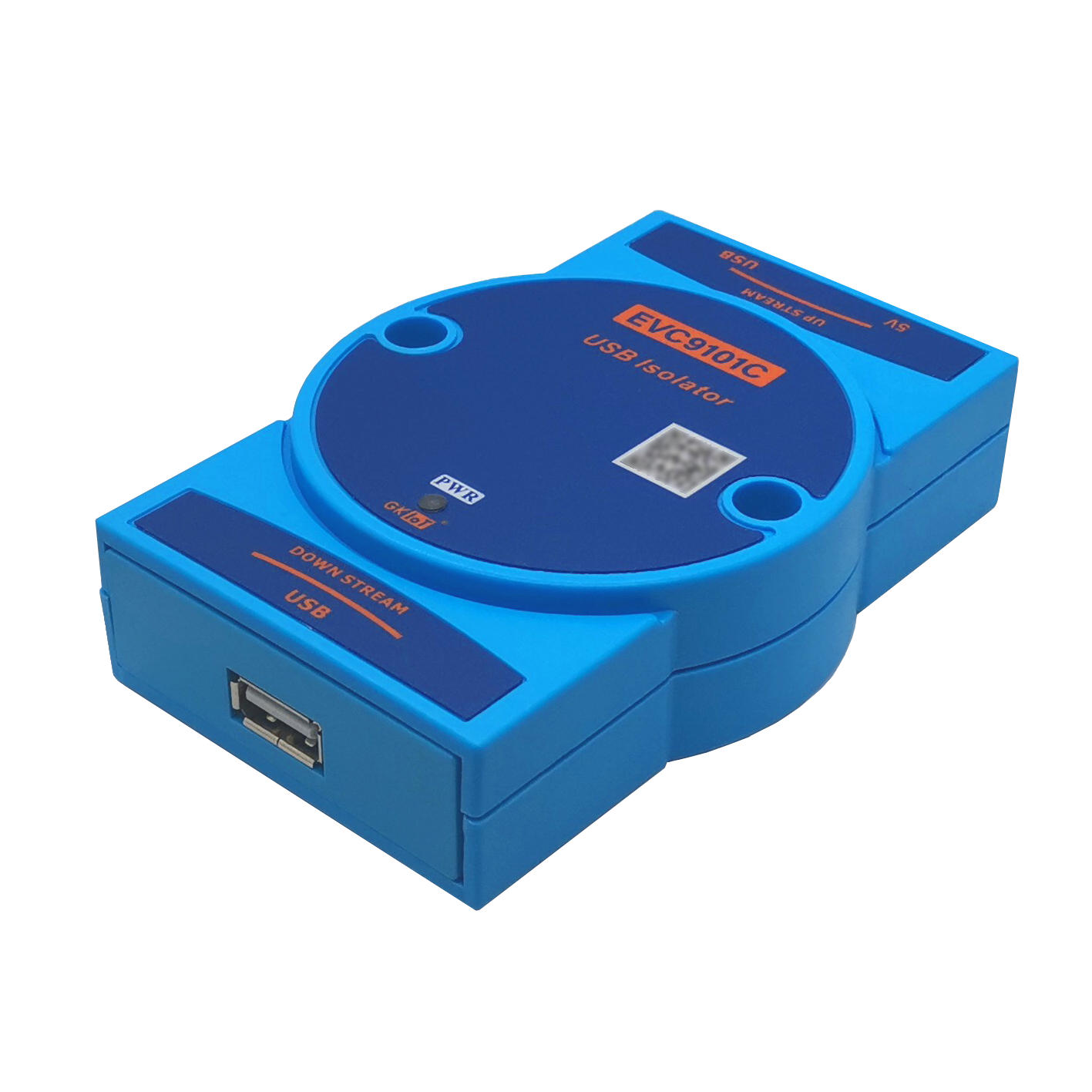

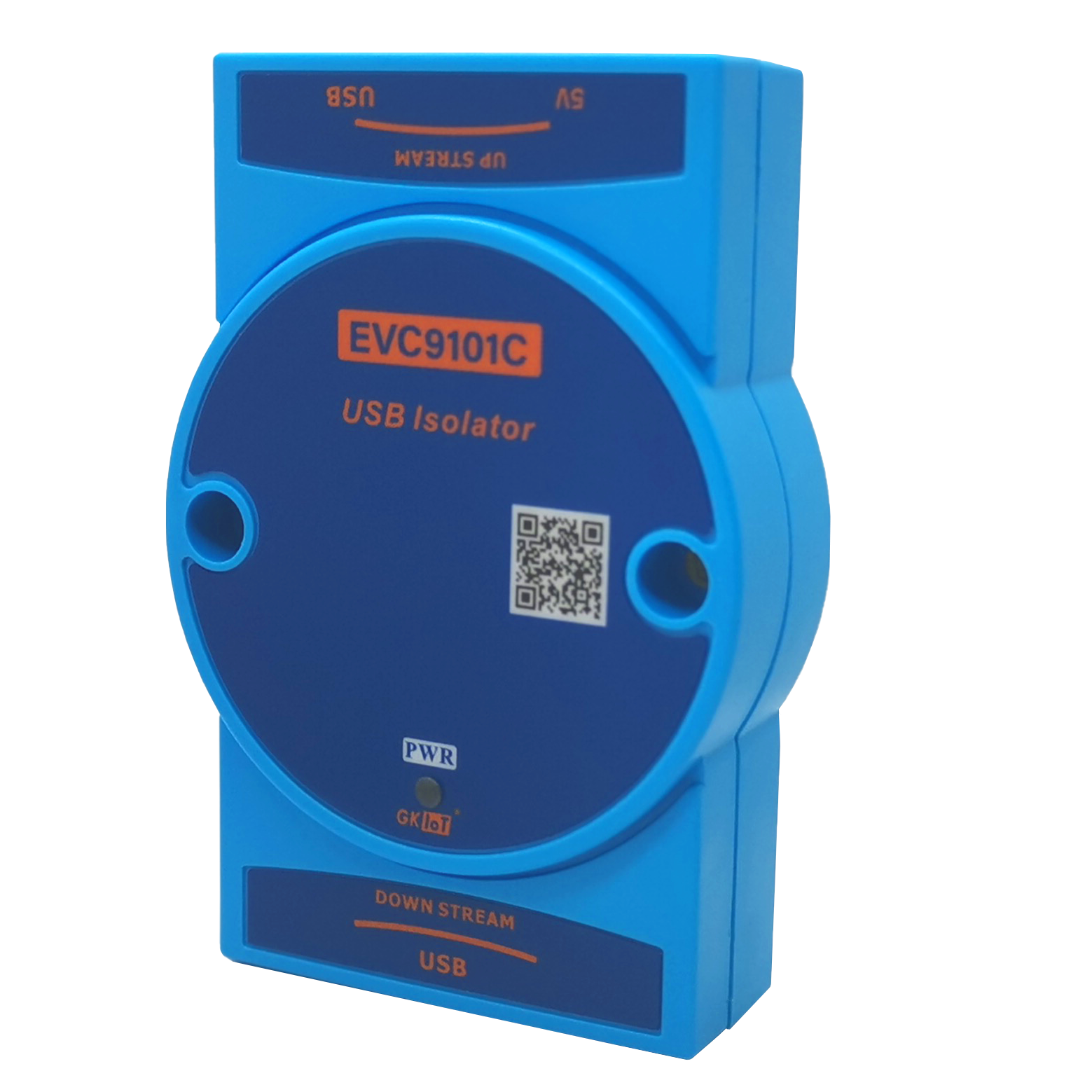

Product Introduction

• Provides electrical isolation for USB devices
• Suitable for one-to-one connections with USB interface devices
• Supports USB high speed, full speed, and low speed devices
• Internal PCB slotted isolation, 3000V isolation voltage
• TVS protection (Upstream and Downstream)
• Driverless operation
• Suitable for USB hubs and extenders
• No additional transmission delay
• Maximum output current of output port: 200mA
• Input port: USB B-type square port; output port: USB A-type port
• Switch-level short-circuit protection
• Input and output ports include ESD protection ( 15kV IEC air-gap discharge)
• Supports Windows, Linux, MAC, Android, and Windows CE operating systems
• Operating temperature: -40℃ to 85℃
• Installation: Standard ADAM module, DIN rail mounting, stackable
• Mechanical dimensions: 103×70×26 mm ( L*W*H )
• Environmentally friendly, lead-free

Applications

• Industrial automation systems
• USB debugging equipment
• Medical equipment
• Isolation of various industrial control USB devices
• Noise-sensitive areas
• Working environments with high voltage and strong interference
• All environments requiring USB electrical isolation

Table 1 LED  indicator

• Switch-level short-circuit protection
• Input and output ports include ESD protection ( 15kV IEC air-gap discharge)
• Supports Windows, Linux, MAC, Android, and Windows CE operating systems
• Operating temperature: -40℃ to 85℃
• Installation: Standard ADAM module, DIN rail mounting, stackable
• Mechanical dimensions: 103×70×26 mm ( L*W*H )
• Environmentally friendly, lead-free

Table 2  Signal connection description

Table 3  Technical parameters
