Description

10Base-T1S-USB-ETH

1 Description

1.1   Overview

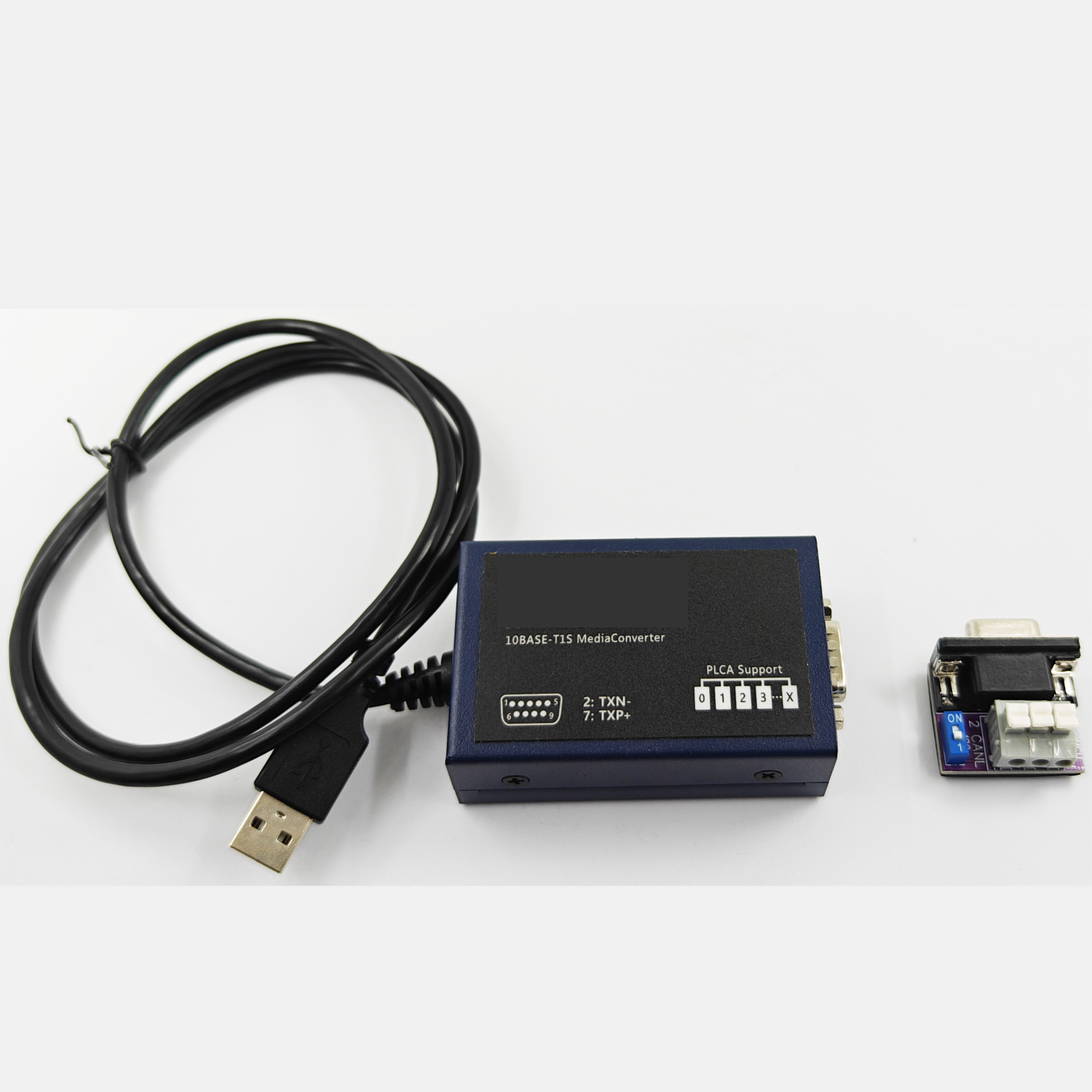

• 10BASE-T1S-USB-ETH is a 10Base-T1s to 10M USB Ethernet converter with case, support Multidrop bus line and Point-to-Point, Comes with DB9 connector PIN2 To TXN-, PIN7 To TXP+.  A DB9 To Terminal Board with PIN2,PIN7,GND,120ohm resistance on/off button, which is easily for end customer use with 10Base-T1 ethernet.
• 10BASE-T1S is a new automotive Ethernet PHY standard following 100BASE-T1 and 1000BASE-T1. With a bandwidth of 10 Mbps, multi-device shared topology, and PLCA (Physical Layer Collision Avoidance) mechanism, 10BASE-T1S provides an Ethernet-based alternative to traditional bus systems. support PLCA,10BASE-T1S is IEEE 802.3cg standard, Use UTP for communication.
• Supports a data rate of up to 10 Mbps for a single twisted pair cable, suitable for up to 25 meters of full/half duplex networks, aiming to achieve collision free and deterministic transmission on multi-point networks.

1.2 Product Features

• – 10Base-T1 to 10M USB Ethernet
• – Speed:10Mbps
• – Point-to-Point
• – Multidrop Support
• – PLCA
• – Status LED
• – Metal Shell
• – DB9 connector
• – USB power supply

1.3 Specification

• – USB power supply, PLCA endpoint control with USB Ethernet adapter.
• – Temperature range: -40 ℃ to+85 ℃
• – Power：100mW.
• – Speed：10Mbit/s
• – Industrial control, robotics, and automotive network data collection
• – 77x50x26.5mm
